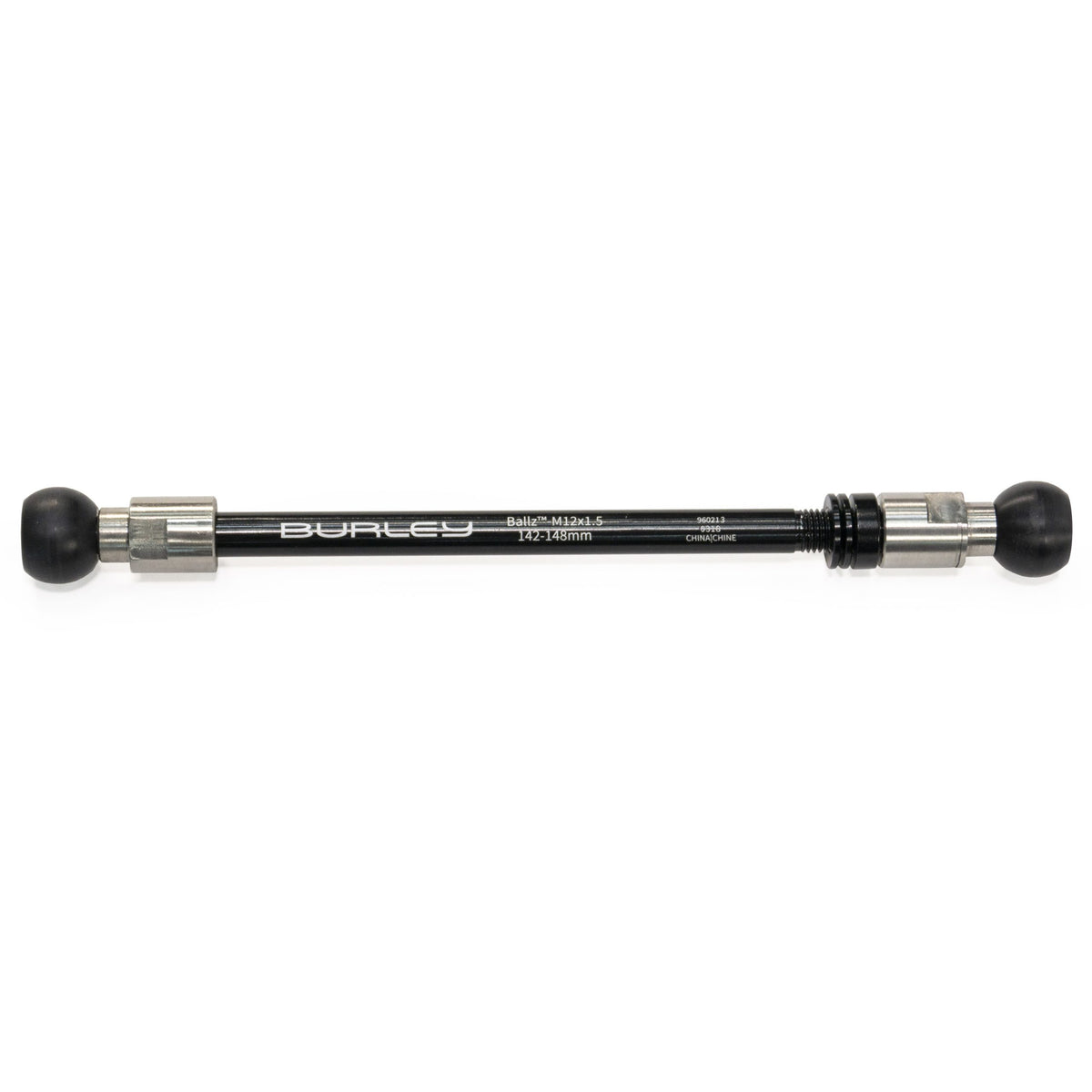

Everybody should have the opportunity to take a trailer with them on every adventure. The Burley Ballz Thru Axle is solution is a solution specifically designed for bikes equipped with a 12mm thru axle to allow a burley hitch and a Burley Coho XC Trailer to be attached to your bike.
Please note that generice stock thru axles are not able to accommodate any sort of axle mounted hitch system. A Burley Ballz Thru Axle is required for any bike with a 12mm rear thru axle to use the Coho XC Bike Trailer. The Burley Ballz Thru Axle is not compatible with all carbon fiber bike frames (consult manual).
Specifications:
- Diameter - 12mm
- Thread Pitch - 1.5mm
- Hub Spacing - 142-148mm
- Part Number 960213
Features:
- Official Burley Ballz adapter for bikes with 12mm rear thru axles
- Includes both the thru axle and Ballz hitch mounts
- Quick and easy installation
- Specially designed for use with the Coho XC
Important Information:
- Carefully read the instructions provided, your Burley trailer manual and your bicycle manual.
- Carefully follow all the instructions included with the thru Axle.
- Confirm that the towing bicycle is suitable for pulling trailers before use. Pulling a trailer with a bicycle that has not been approved by its manufacturer for towing can result in frame breakage or other material damage.
- Burley Thru Axle and Hitch must be installed to the appropriate bolting torque before use. Please consult your local bike shop if you do not have a properly calibrated torque wrench for installation.
- Burley Ballz Thru Axle is only to be used when using an attached trailer. Using a wider axle can increase the risk of impacting trail and road side objects.
- The bike manufacturer supplied axle must be used when a trailer is not in use.

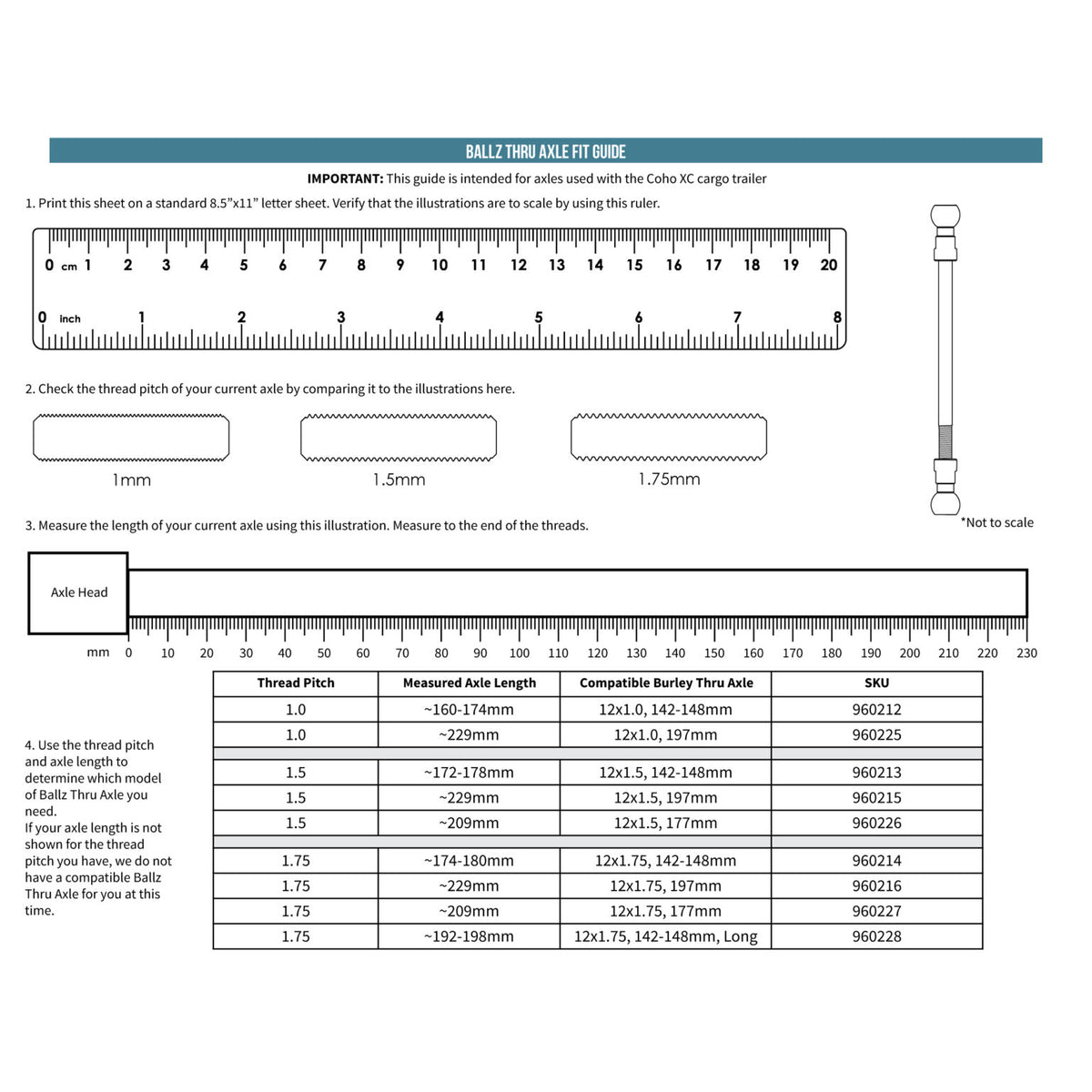

Available sizes of the Thru Axle include:
- 12 x 1.0 tp, for 142-148mm hub spacing (160-174mm actual length) — Includes 1 conical spacer and 1 flat spacer
- 12 x 1.5 tp, for 142-148mm hub spacing (172-178mm actual length) — Includes 1 flat spacer
- 12 x 1.75 tp, for 142-148mm hub spacing (174-180mm actual length) — Includes 1 flat spacer
- 12 x 1.75 tp, for 142-148mm (Long) hub spacing (192-198mm actual length) — Includes 1 flat spacer
- 12 x 1.5 tp, for 177mm hub spacing (209mm actual length)
- 12 x 1.75 tp, for 177mm hub spacing (209mm actual length)
- 12 x 1.0 tp, for 197mm hub spacing (229mm actual length)
- 12 x 1.5 tp, for 197mm hub spacing (229mm actual length)
- 12 x 1.75 tp, for 197mm hub spacing (229mm actual length)
